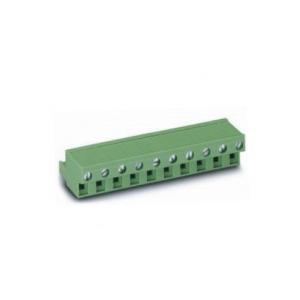

LC3 - 7.5 / 7.62 20A Pluggable Terminal Block, PA / VO Insulation Resistance
Ask Latest Price
Video Channel
Place of Origin :shanghai,china
Brand Name :elinker
Certification :CE
Model Number :LC3-7.5/7.62
MOQ :10 pices
Delivery Time :7-21days
Payment Terms :TT
Contact Now

Add to Cart
Find Similar Videos
View Product Description

LC3 - 7.5 / 7.62 20A Pluggable Terminal Block, PA / VO Insulation Resistance Description:

LC3 series plug is with a positive connection. The direction of screwdriver and wire insertion is prarallel; In order to avoid mis-insertion, coded adapter can be used. We can provide the adapters with fixed screw in the side, which may constitute anti-vibration connection.


Diagram and parameter description:

  • LC3-7.5/7.62
  • Rated voltage(v):
    400
  • Rated current(A):
    20
  • Wire Size(m㎡):
    2.5
  • Wire Size(AWG):
    24-12
  • Single/multi-core diameter(m㎡):
    0.2-2.5
  • Maximum tightening torque(Nm):
    0.5-0.6
  • Screw:
    M3
  • Strip length:
    10
  • Resistant voltage(kv):
    6
  • Insulation Resistance:
    PA/VO
  • Poles(P):
    2-24

Aseembly of LC3-7.5/7.62:
